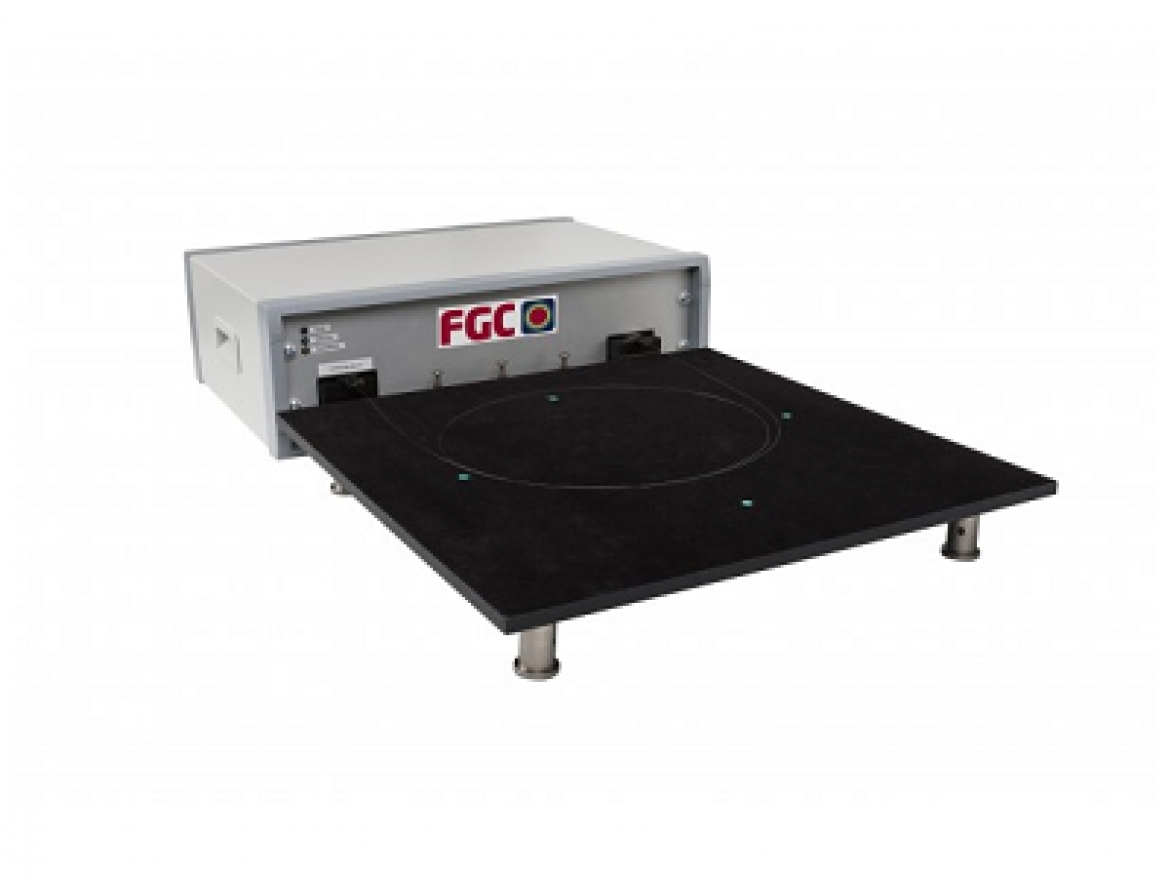

Arden Fiber and Array Geometry Measurement System



The Arden FGC range is the complete solution for measuring the dimensions of standard and speciality fiber in both production and R&D environments. The Arden darkfield illumination system allows the software to show a clear live image of the end face of the fiber by illuminating the end face of the fiber and imaging the reflected light. This allows users to inspect the end face of the fiber whilst taking geometry measurements.



The FGC-GT is for fiber glass geometry for fibers up to 400 µm diameter.



The FGC-GS is for fiber glass geometry for fibers up to 1000 µm diameter.



The FGC-GA is the all-in-one solution for precision measurements of the geometry of the widest range of optical fibers, V-groove arrays and ribbon connectors. With one unit, users can completely characterize V-groove block geometry, core-to-core pitch and core X & Y offset of multifiber arrays up to 15mm in width. With a huge 1200µm field of view as well as an automated lateral scanning stage, the FGC-GA can give you all the results you need.



The FGC-P Fiber Coating Geometry System is the fast, reliable solution for measuring the geometry characteristics of optical fiber coatings.
